Name: Sky Realm System Window
Brand: EDUCE Home Furnishing
SKU: Sky Realm System Window
Price: 1 USD
Availability: InStock
Rating: 4.5 (117 reviews)

Home > products > Aluminum Window >

Sky Realm System Window

Place of Origin:

Guangdong, China

Brand Name:

EDUCE Home Furnishing

Certification:

IDA Design Awards, GB/T 19001-2016/ISO 9001:2015, Muse Design Awards

Model Number:

Sky Realm System Window

Request A Quote

Product Details

Wall Thickness Of Profile Frame:

1.9mm

Wall Thickness Of Profile Fan:

1.9mm

Border To Wall Thickness:

120mm

Opening Method:

Outer Horizontal Opening/outer Upper Suspension/outer Open Upper Suspension

Customization:

Yes

Glass Configuration:

6mm+27A+6mm (warm Edge Strip)

Glass Selection:

8+24A+8、10+20A+10、10+2.28pvb+10、12+2.28pvb+12+2.28pvb+12

Gauze Mesh:

0.8mm Thick 304 Alloy Steel Mesh Material

Hinge:

Vihagen Load-bearing Hinge And 180 Degree, Invisible Hinge For Gauze Fan.

Handle:

Imported German Haobo Handle

Locking System:

Vihagen Bidirectional Silent Transmission Box And Anti Pry Locking Point Lock Seat, Safety Limiter

Sealant Strip:

EPDM Composite Foam Sealant Strip

Insulation Strip:

PA66 Nylon Insulation Strip

Thermal Insulation Performance W (㎡· K):

Level 6

Sound Insulation Performance (dB):

Level 4

Water Tightness Performance (Pa):

Level 6

Airtightness Performance:

Level 8

Wind Pressure Resistance Performance (KPa):

Level 9

Color Configuration:

Coffee Jump Hermes Orange

Payment & Shipping Terms

Minimum Order Quantity

10square meters

Packaging Details

Foam packing with strong wooden pallets

Delivery Time

45 days

Payment Terms

T/T

RELATED PRODUCTS

86-757-8565-1691

Educe@door-window-educe.com

86-0757-8565-1691

Contact Now

Product Description

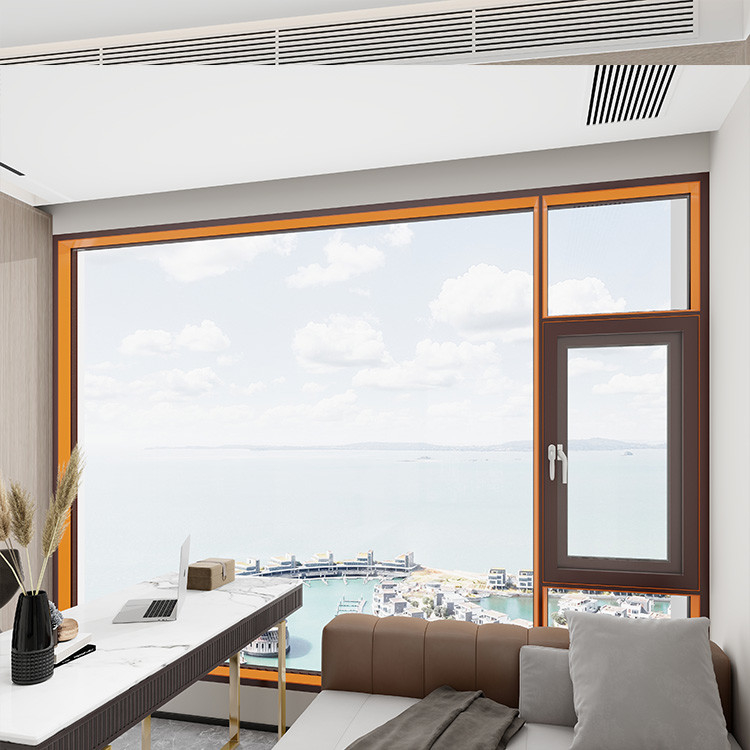

Mirror of the sky series is a narrow edge broken bridge window, gauze fan integrated outward opening system window. The window and gauze fan integrated, the narrow edge design and double-sided frame and fan inside and outside flush design, full of aesthetic feeling, three-dimensional sense is stronger. The protective grille can be opened, when it closed, which can prevent burglary and children climbing the window; when it opened, it can escape in an emergency, improve the safety of home life. The application of continuous bending integral sealing technology, improve the overall performance of doors and windows, quality upgrade.
