Name: Time on the North Shore
Brand: EDUCE Home Furnishing
SKU: Time on the North Shore
Price: 1 USD
Availability: InStock
Rating: 4.6 (181 reviews)

Home > products > Aluminum Window >

Time on the North Shore

Place of Origin:

Guangdong, China

Brand Name:

EDUCE Home Furnishing

Certification:

IDA Design Awards, GB/T 19001-2016/ISO 9001:2015, Muse Design Awards

Model Number:

Time on the North Shore

Request A Quote

Product Details

Wall Thickness Of Profile Frame:

1.9mm

Wall Thickness Of Profile Fan:

1.9mm

Border To Wall Thickness:

120mm

Opening Method:

Outer Horizontal Opening/outer Upper Suspension/outer Open Upper Suspension

Customization:

Yes

Glass Configuration:

6mm+27A+6mm (warm Edge Strip)

Glass Selection:

8+24A+8、10+20A+10、12+2.28pvb+12+2.28pvb+12

Gauze Mesh:

0.8 Thick 304 Alloy Steel Mesh Material

Hinge:

Vihagen Load-bearing Hinge And 180 Degree Invisible Hinge For Gauze Fan.

Handle:

German Haobo Handle

Locking System:

Vihagen Bidirectional Transmission Box And Anti Pry Locking Point Lock Seat, Safety Limiter.

Sealant Strip:

EPDM Composite Foam Sealant Strip.

Insulation Strip:

PA66 Nylon Insulation Strip

Thermal Insulation Performance W (㎡· K):

Level 6

Sound Insulation Performance (dB):

Level 4

Water Tightness Performance (Pa):

Level 6

Airtightness Performance:

Level 8

Wind Pressure Resistance Performance (KPa):

Level 9

Color Configuration:

Starry Sky Black - Jumping Hermes Orange

Payment & Shipping Terms

Minimum Order Quantity

10square meters

Packaging Details

Foam packing with strong wooden pallets

Delivery Time

45 days

Payment Terms

T/T

RELATED PRODUCTS

86-757-8565-1691

Educe@door-window-educe.com

86-0757-8565-1691

Contact Now

Product Description

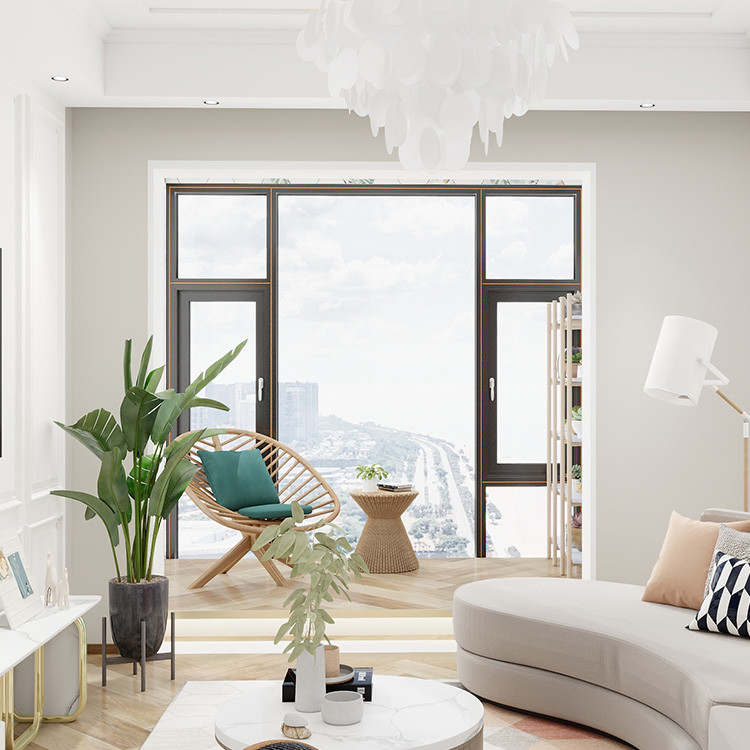

North Shore years series is the industry's first narrow edge broken bridge window, gauze fan integrated outward opening system window, with simple lines to present a more delicate texture. Provide better visual enjoyment. The wall thickness of the profile adopts the new national standard, the use of three-dimensional jumping color decorative free collocation, so that the space is no lack of elegant and fashionable character. At the same time, the whole frame adopts isotherm vertical design, the opening position adds three seals, the performance and appearance are both excellent, and the home is more beautiful, elegant and fashionable.
