Name: Berlin Casement Window
Brand: Foshan Nanhai EDUCE Home Furnishing Technology Co.，Ltd.
SKU: Berlin Casement Window
Availability: InStock

Home > Products > Aluminum Window >

Berlin Casement Window

Place of Origin:

Guangdong, China

Brand Name:

EDUCE Home Furnishing

Certification:

IDA Design Awards, GB/T 19001-2016/ISO 9001:2015, Muse Design Awards

Model Number:

Berlin Casement Window

Request A Quote

Product Details

Wall Thickness Of Profile Frame:

1.8mm

Wall Thickness Of Profile Fan:

1.8mm

Border To Wall Thickness:

106mm

Opening Method:

Swing

Customization:

Yes

Glass Configuration:

5mm+19A (warm Edge Strip)+5mm

Optional Large Glass:

8mm+19A (aluminum Strip)+8mm, 10mm+20A (aluminum Strip)+10mm

Gauze Mesh:

Standard Configuration Of 0.7mm Thick 304 Alloy Steel Mesh Material

Hinge:

Standard EDU-B01 Load-bearing Hinge (mesh Invisible Hinge Opening Angle 180)

Handle:

Standard EDU-A02 Handle (silver Gray)

Locking System:

Standard Silent Anti-theft And Anti Pry Locking Point Lock Seat, Safety Limiter.

Sealant Strip:

EPDM Composite Foam Sealant Strip

Insulation Strip:

PA66 Nylon Insulation Strip

Thermal Insulation Performance W (㎡· K):

Level 5

Sound Insulation Performance (dB):

Level 4

Water Tightness Performance (Pa):

Level 6

Airtightness Performance:

Level 8

Wind Pressure Resistance Performance (KPa):

Level 9

Color Profile:

EDUCE Grey

Payment & Shipping Terms

Minimum Order Quantity

10square meters

Packaging Details

Foam packing with strong wooden pallets

Delivery Time

45 days

Payment Terms

T/T

EDU98Hi Dual Inner Opening System Window

Get Best Price

EDU85HI Inner Window - EDUCE Grey

Get Best Price

Sicily Intelligent Lifting Window

Get Best Price

Phantom Lift Window

Get Best Price

86-757-8565-1691

Educe@door-window-educe.com

86-0757-8565-1691

Contact Now

Product Description

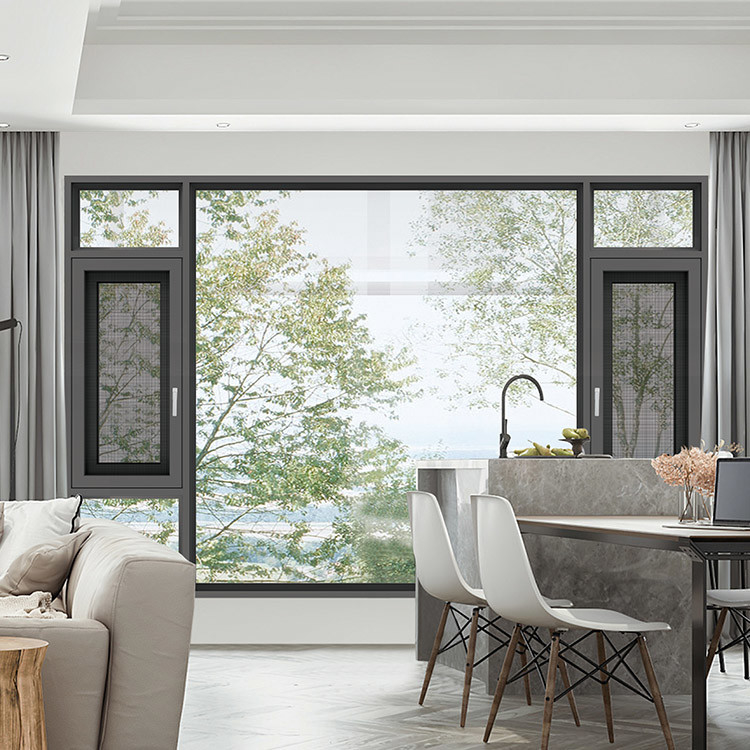

Berlin window and gauze fan integrated outward opening window, inclined line pressing,and the frame and fan inside and outside flush design, highlight the sense of space hierarchy; double-layer hollow tempered glass, effectively isolate outdoor noise; three sealing & isothermal vertical, better heat preservation and insulation performance; implicit drainage structure, smooth drainage, standard with windproof and drainage cover, to avoid rainwater back irrigation; standard R3 arc small corner protector, collision prevented, beautiful and durable; upgrade the screen bending process, stable structure, mosquito and insect prevention; optional safety grid device, effectively improve the safety performance.
