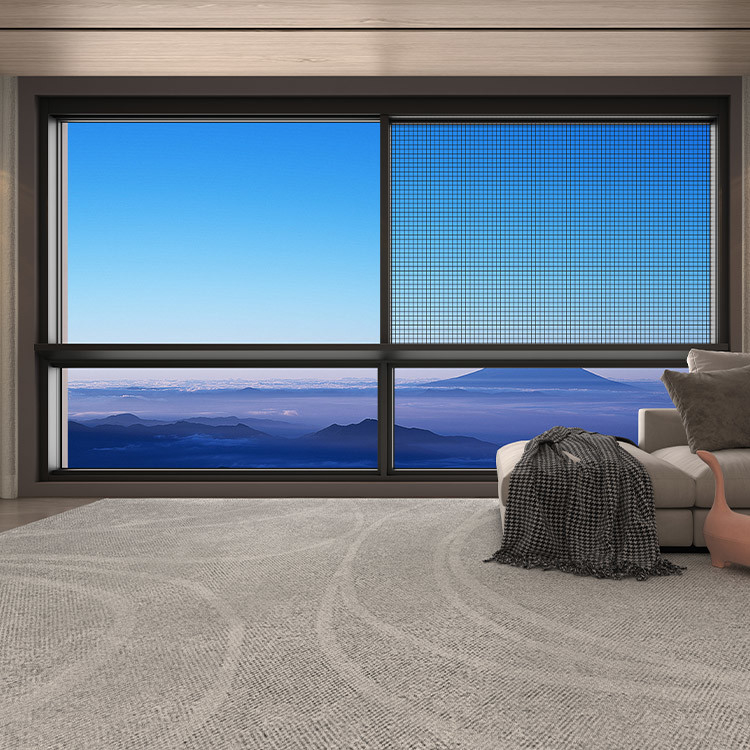

Star Map Sliding Window

Place of Origin:

Guangdong, China

Brand Name:

EDUCE Home Furnishing

Certification:

IDA Design Awards, GB/T 19001-2016/ISO 9001:2015, Muse Design Awards

Model Number:

Star Map Sliding Window

Request A Quote

Product Details

Profile Frame Wall Thickness:

3.0mm

Wall Thickness Of Profile Fan:

1.8mm

Two Tracks Occupying Wall Thickness:

109mm

Three Rails Occupy A Wall Thickness Of:

140mm

Opening Method:

Push Pull

Customized:

Yes

Glass Configuration:

5mm+19A+5mm(Warm Edge Strip)

Glass Selection:

6mm+16A+6mm

Gauze Mesh:

0.8mm Thick 304 Material Steel Mesh

Sealing Rubber Strip:

EPDM Anti-collision Sealant Strip

Sealing Wool Strip:

Silicified Sealing Strip

Thermal Insulation Performance W (㎡· K):

Level 5

Sound Insulation Performance (dB):

Level 4

Water Tightness Performance (Pa):

Level 5

Airtightness Performance:

Level 6

Wind Pressure Resistance Performance (KPa):

Level 9

Color Configuration:

EDUCE Grey

Flat Lock:

Silver

Payment & Shipping Terms

Minimum Order Quantity

10square meters

Packaging Details

Foam packing with strong wooden pallets

Delivery Time

45 days

Payment Terms

T/T

RELATED PRODUCTS

86-757-8565-1691

Educe@door-window-educe.com

86-0757-8565-1691

Contact Now

Product Description

Star chart narrow side five-gauge sash window, the wall thickness of the profile is 1.8mm, in line with the new national standard; the lock hidden design with extremely narrow frame, the opening area can reach 50%, better ventilation and lighting effect; double row pulley design, good load-bearing capacity, smooth pushing and pulling: double layer hollow tempered glass with warm edge strip, thermal insulation performance is excellent; multi-channel sealing wool sliver overlapping, effectively reduce track air convection, improve the overall sealing performance; rail sinking hidden inclined surface drainage structure, rainstorm drainage is still smooth without rainwater backflow; indoor handrail / invisible high permeable yarn mesh / guardrail clothes rack can be installed.
