Name: Sena Double Insidesystem Window
Brand: EDUCE Home Furnishing
SKU: Sena Double Insidesystem Window
Price: 1 USD
Availability: InStock
Rating: 4.6 (193 reviews)

Home > products > Aluminum Window >

Sena Double Insidesystem Window

Place of Origin:

China

Brand Name:

EDUCE Home Furnishing

Certification:

IDA Design Awards, GB/T 19001-2016/ISO 9001:2015, Muse Design Awards

Model Number:

Sena Double Insidesystem Window

Request A Quote

Product Details

Water Density Performance:

Level 6

Air-tight Performance:

Level 8

Wind Pressure Resistance Performance:

Level 9

Soundproof Performance:

Level 4

Handle:

Silver

COLOR CONFIGURATION:

Edun Gray Or Coffee Color Or Anhui Style Coffee Color Or Starry Sky Black

Payment & Shipping Terms

Minimum Order Quantity

10square meters

Packaging Details

Foam packing with strong wooden pallets

Delivery Time

45 days

Payment Terms

T/T

RELATED PRODUCTS

86-757-8565-1691

Educe@door-window-educe.com

86-0757-8565-1691

Contact Now

Product Description

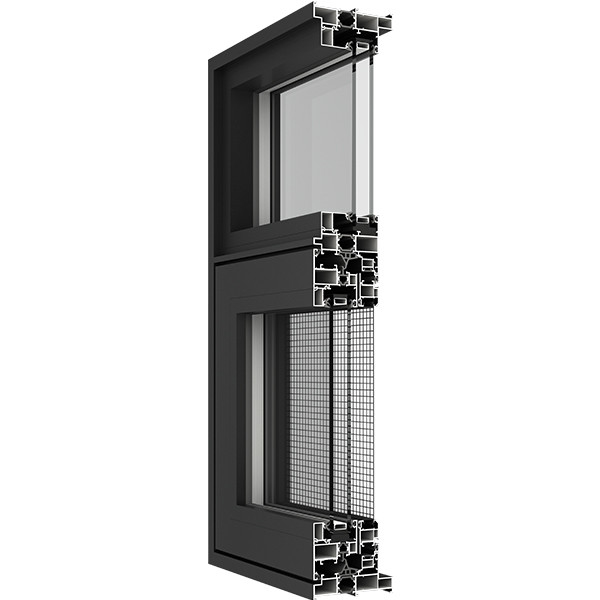

The main profile wall thickness is 1.8mm, and the frame and fan are designed flush, with a flat and smooth surface.Square pressing line design, stronger three-dimensional sense.The internal opening and broken bridge structure can balance ventilation and protection functions.Standard configuration 304# stainless alloy gauze, it can prevent mosquitoes and particles from entering indoor, with a higher protection coefficient.The double lock points design of the gauze fan, effectively solves the problem of gauze fan shaking.Glue injection expansion corner code process effectively increases splicing strength,

stabilizes structure, and has better load-bearing capacity. Integrated circular arc angle protection, with a flat and seamless appearance, anti-knock and scratch.Standard configuration PA66 Nylon heat insulation strip, effectively achieving heat preservation and insulation performance.EPDM composite foam sealing rubber strip for better soundproof and waterproofing.Three seals at the opening position,effectively ensure air and water tightness; The obvious of drainage structure ensures smooth drainage and good sealing.

Hardware: Glass configuration: 5mm+19A+5mm(Warm edge strip)

The fix large glass optional configuration:6mm+16A+6mm,8mm+24A+8mm,10mm+20A+10mm

Gauze configuration: Middle transparency gauze
